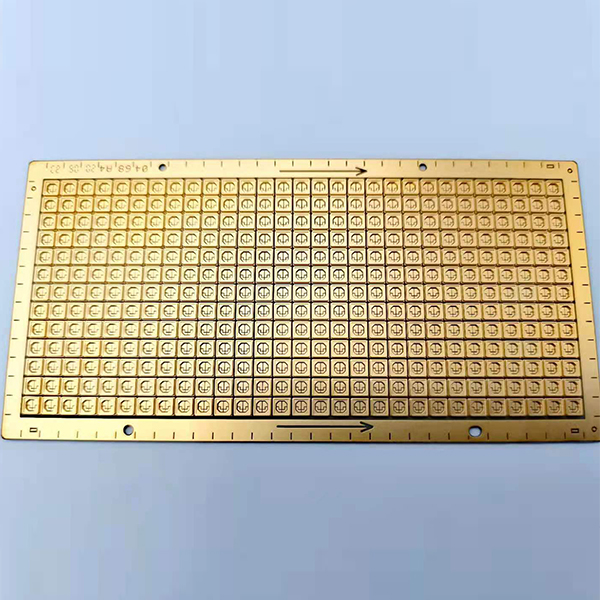

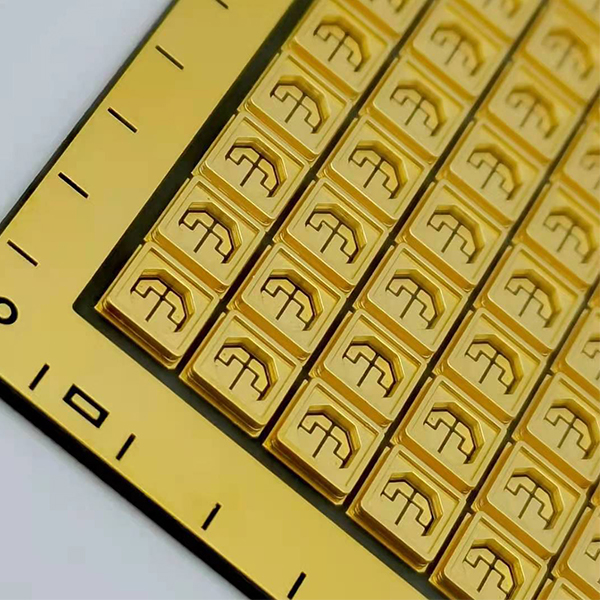

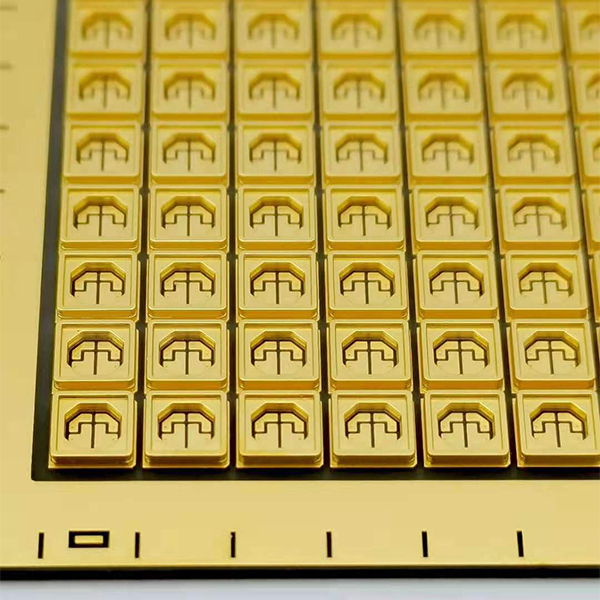

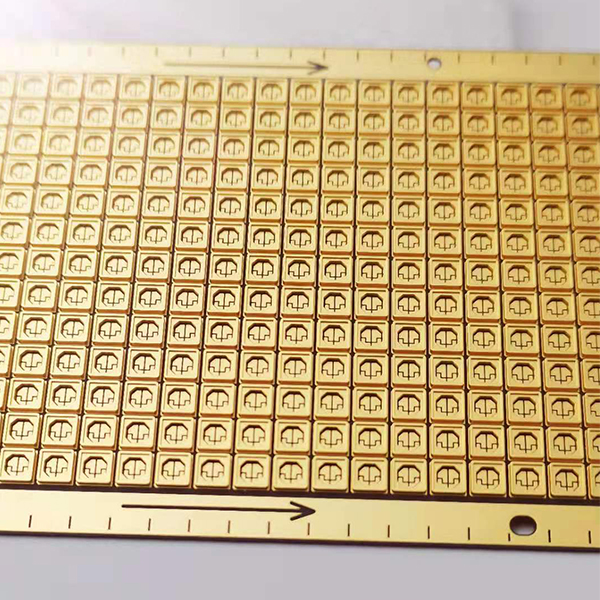

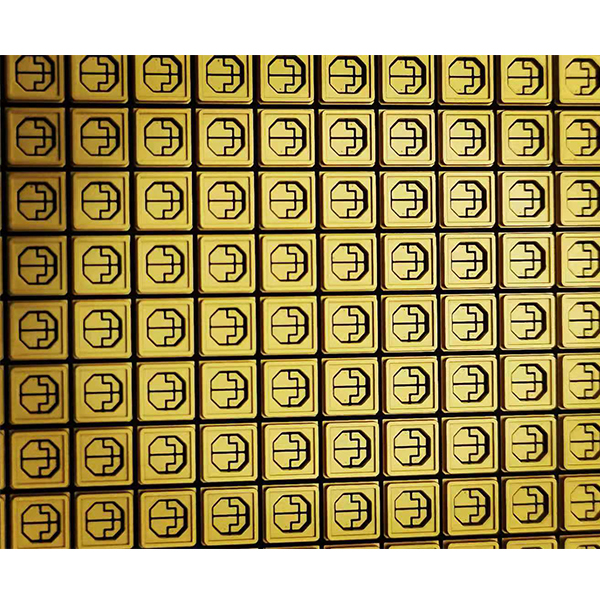

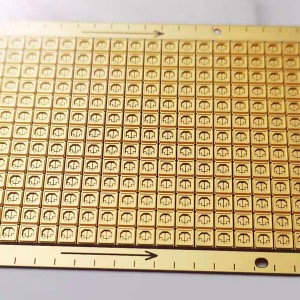

Thin film circuit 3535 UVC LED ceramic bracket
Product parameters:
| Product name: | Thin film circuit |
| Model Number | 3535 UVC LED ceramic bracket |
| Brand Name | ChipSimple |
| Base Material | Al2O3 (Alumina)/ALN |
| Board Thickness | 0.25-3mm |
| production process | Silk screen sintering process |
| Layer | 1-2Layer |
| Condutor for Trace | Copper |
| Condutor Thikness | 5-500um |
| Min. Hole Size | 0.1MM |
| Min. Line Spacing | 50um/50um |
| Resistance range | Customized |
| Solder mask color | Red Yellow Blue Green White Black |
| Surface Finishing | ENIG/ENEPI/Immerison silver |
| Certificate | ISO9001/TS16949 |
| key word | ceramic PCB |
| Specification | Customized |
| Transport Package: | Plastic Vacuum Bag |
| Delivery: | By courier |
| Place of Origin: | GuangDong, China |
